2.3 Security checking

2.3.1 Emergency stop

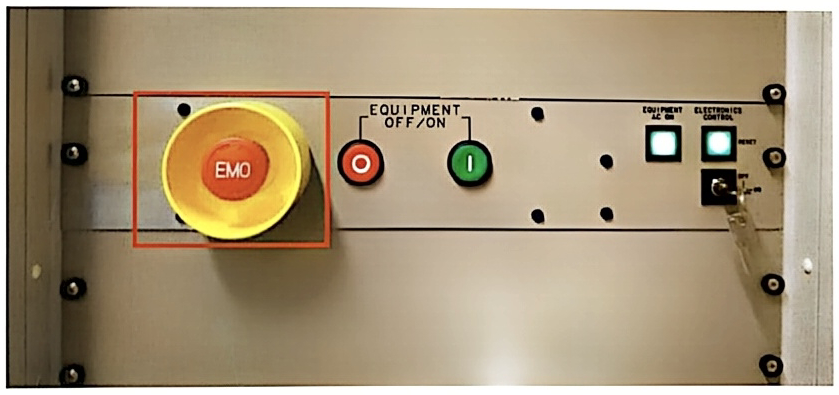

In case of emergency, the instrument can be turned off instantly. There are two emergency buttons on a 7F-Auto, one on the vacuum bay on vacuum cabinet (Red box in fist figure below) and one on the body at the cable tray rail (Green box in second figure below).

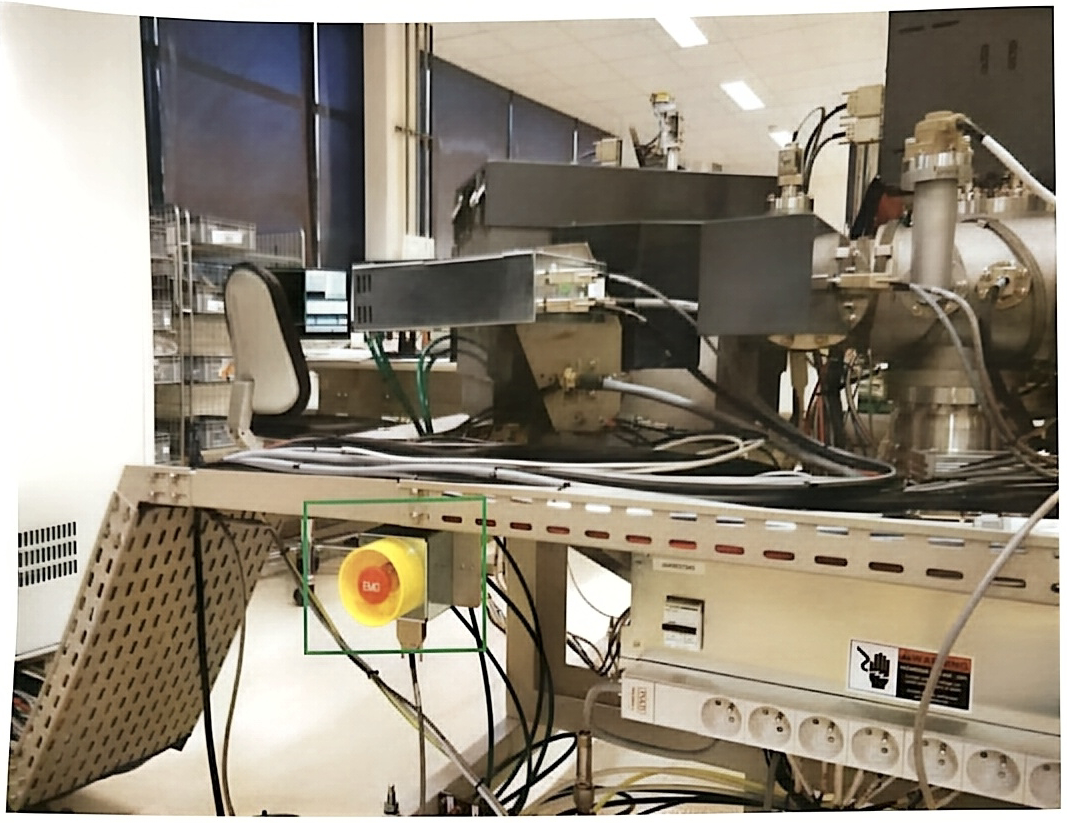

EMO button on the Vacuum cabinet and the cable tray of the instrument

In case of emergency and only in emergency, push one of these buttons to turn off the instrument instantly.

2.3.2 Turning back on the instrument after emergency stop:

Please follow the same steps from the previous part: “Starting the instrument” in this document.
